Подгон от китайских соратников. Вполне удобная вещица оказывается, не надо ничего листать мотать туда сюда, всё наглядно. Пользуйтесь если приглянется.
Скачать->

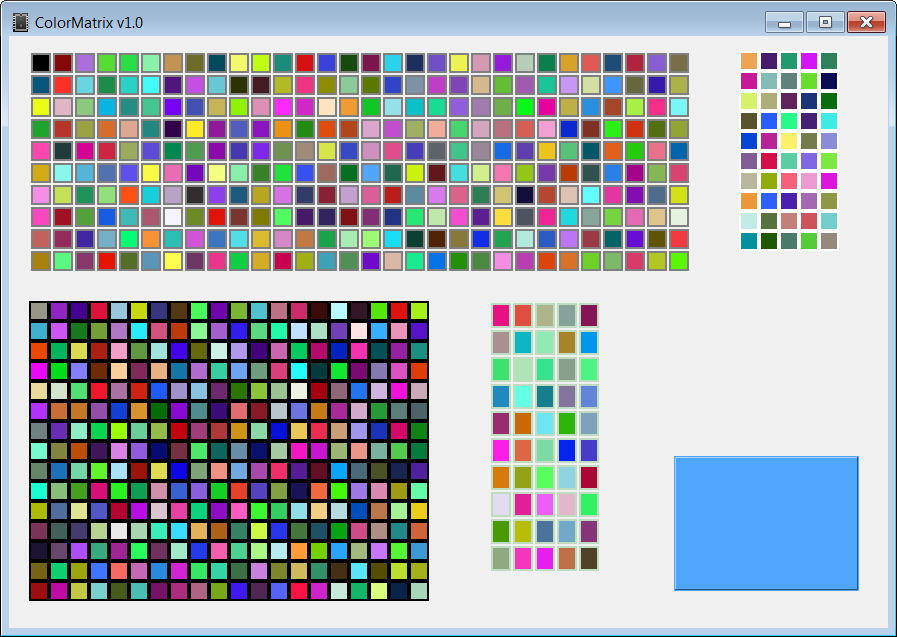

ColorMatrix панель выбора цвета
Страница: 1
Сообщений 1 страница 3 из 3
Поделиться12024-05-14 09:54:52
Поделиться22025-01-15 23:05:33
Продолжение темы

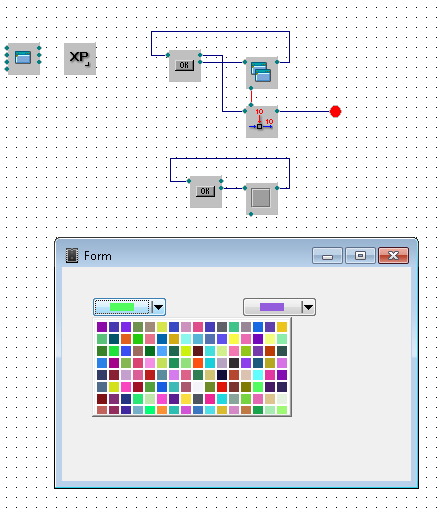

Скрестив мной модернизированную кнопку можно примерно так
Код:
Add(MainForm,2953706,21,105)
{
Width=574
Height=468
}
Add(StyleXP,16531021,77,105)
{
}
Add(ChildPanel,8067113,259,245)
{
link(onEvent1,7040136:doIcon,[(303,251)(303,221)(184,221)(184,244)])
}
BEGIN_SDK
Add(EditMulti,5019975,21,21)
{
EventCount=1
WorkCount=1
VarCount=1
Width=531
Height=263
link(doWork1,15775568:doPos,[(45,27)(45,83)])
link(Var1,6965133:SelectColor,[(27,207)(209,207)])
}
Add(Panel,6499319,154,70)
{
Left=-1000
Top=-1000
Width=200
Height=100
Color=-16777211
Visible=1
Point(doLeft)
Point(doTop)
Point(doVisible)
}
Add(ColorMatrix,6965133,203,98)
{
Width=210
Height=95
Color=16777215
BoxRows=8
BoxCols=16
BoxWidth=10
link(onClick,16622711:doEvent1,[])
}
Add(DoData,15089478,70,140)
{
Data=Integer(0)
link(onEventData,1843716:doWork3,[(130,146)])
}
Add(Hub,16622711,252,98)
{
link(onEvent1,7997678:doEvent1,[])
link(onEvent2,15089478:doData,[(319,111)(319,188)(57,188)(57,146)])
}
Add(InlineCode,15775568,70,77)
{
WorkPoints=#5:doPos|
EventPoints=#3:onx|3:ony|3:onV|
Code=#26:{ Author -=andrestudio=- }|15:unit HiAsmUnit;|0:|9:interface|0:|29:uses kol,windows,Share,Debug;|0:|4:type|28: THiAsmClass = class(TDebug)|10: private|0:|9: public|28: onX,onY,onV: THI_Event;|47: procedure doPos(var dt: TData; idx: word);|5: end;|0:|14:implementation|0:|54:procedure THiAsmClass.doPos(var dt: TData; idx: word);|3:var|19: pos,x,y: integer;|15: p,p2: TPoint;|5:begin|32: pos := Cardinal(ToInteger(dt));|24: p.x := (pos and $ffff);|21: p.y := (pos shr 16);|31: p2 := Applet.Screen2Client(p);|23: _hi_onEvent(onX,p2.x);|23: _hi_onEvent(onY,p2.y);|20: _hi_onEvent(onV,1);|4:end;|0:|4:end.|
link(onx,6499319:doLeft,[])
link(ony,6499319:doTop,[])
link(onV,1843716:doWork2,[])
}
Add(HubEx,1843716,126,91)
{
link(onEvent,6499319:doVisible,[])
}
Add(Icon,1918409,413,119)
{
Icon=[0000010001002020000001002000A810000016000000280000002000000040000000010020000000000000100000000000000000000000000000000000000000000000000000000000000000000000000001000000020000000300000006000000080000000A0000000B0000000D0000000F000000100000000F0000000F0000000F00000010000000100000000F0000000D0000000B0000000A0000000800000005000000030000000200000001000000000000000000000000000000000000000000000000000000000000000100000003000000080000000E000000170000001F000000270000002F000000320000002E0001012E000101360001013E0000013E000101380001012E0000002C0000002F0000002E000000260000001E000000150000000D0000000700000003000000010000000000000000000000000000000000000000000000010000000200000007000000100000001D0000002E0000003F0001014A0001026801020298010202C0010303DA020505EB020506F2020606F4020505EE010404E1010404C9010303A6010202750001014A0001013A0000002C0000001B0000000E00000006000000020000000100000000000000000000000000000000000000010000000200000007000000100000001F0001012E0001013A010303B0010505FF020707FF02090AFE030B0CFC030D0DFD040E0FFE040E0FFE040E0EFD030C0CFC030A0BFD020808FF020605FF010303DA00020258000101260000001F0000000E00000006000000020000000100000000000000000000000000000000000000000000000200000004000000090000000C0103046D020404E3030809FE040D0DFF061314FF071817FF081D1BFF0A201FFD0A2324FE0A2425FF0A2222FD091F1DFF081A19FF061616FF051011FF030B0BFE020707F00104049A01020222000100090000000400000001000000000000000000000000000000000000000000000000000000000000000200010102010A0A91050808FE070F0FFD091617FF0B1F21FF0E2824FE0F313BF80F386AF6103C90F71241A3FB1242A7FE104098F70F3B7BF60F334DF70E2B28FC0D2422FF0A1A1CFF081313FE060C0CFD020909C80001010200010102000000000000000000000000000000000000000000000000000000000000000100000001040F13900B0C0CFD0E1717FE102022FF112B2EFD103558F813439AF91750C9FC1A5EDEFF1E68E7FF206DEAFF206EEBFF1F6AE8FF1B63E2FF1957D0FD144AAFFA123C71F8113036FA112626FF0E1A1BFF0C1111FD061110D101080A29000100020000000000000000000000000000000000000000000000000000000200262A7B100E0DFD121A1AFF152627FF15322CFD103D86F51652D5FF1D68E7FF217AF4FF288BF9FF339AFBFF3EA4FBFF40A7FDFF369DFAFF2B90FAFF2482F7FF1F71EDFF195DDCFF1245AFF8123747F7172D2EFF131F1FFF131C1DFB071017BD00000000000000020000000000000000000000000000000100010002020B064A151215FE191F1FFE1B2829FF172F3CFA0F3B97F61958DAFF2075F1FF288EFAFF2DA2FCFF3DB6FCFF59CEFEFF4A94ADFF407E95FF58C1E8FF41BCFCFF32ABFCFF2999FBFF2482F5FF1C67E5FF1449B4FA12344FF51B2E2EFF192122FF17181AFE0417138C0002010400000001000000000000000000000002000000000D0D0DBF1F2221FB21292AFF1F312AFE0E308BF6164FD9FF1F73F4FF2993FCFF30AEFCFF37C4FCFF50DAFDFF67BAC8FF181211FF000000FF31626AFF5BE5FFFF3CCAFBFF33B9FCFF2DA1FCFF2483F9FF1B61E5FF113DBFFC163044F7222F31FF202525FD1A1B1BFF0000003F000000030000000000000000010101020202024B212222F9272A2AFF26302FFE0B215AF2103BCAFD1A5FF1FF2586FBFF2EA9FCFF36C3FCFF3DD8FCFF55EAFDFF74C3C8FF615D5CFF3F3E3EFF406E71FF61F6FFFF42DEFBFF39CFFBFF33B7FCFF2A97FCFF2072F5FF154CDCFF0D2D8BF723312EFC292F30FF292B2BFD0E0E0EA000000000010101020101010100000004121212D5323232FE313436FF1C2939F8081FB1FB1240E2FF1B65F9FF288EFDFF31B2FCFF38CDFCFF3EE0FBFF50EBFBFF73FAFFFF82B0B1FF6F8585FF75E2E5FF54EDFAFF42E6FBFF3BD8FCFF36C0FCFF2CA1FCFF217AFBFF1651EFFF0D2FC3FD0A1C45F1313735FF303131FD232323EA00000006010101010404040400000034343434FF3A3B3BFE3D403EFF0E195CF60A21C9FF113EEDFF1A62FBFF2689FDFF2FADFCFF37C8FCFF3DDBFCFF4DE8FCFF6FF6FEFF6AB6B8FF66A8A9FF72EFF6FF4FEAFBFF40E2FCFF3AD3FCFF34BBFCFF2B9CFDFF2075FCFF164EF5FF0D2ED7FF03128CF62C3237FC393A3BFF383838FE000000670202020201010101000000644B4B4BFF434445FE3D4037FF050E80F8081CD0FF0F35F1FF1755FAFF2179FCFF2B9CFCFF32B7FCFF39CBFCFF4DDDFDFF72DDEBFF1D1B1BFF000000FF5AB1B4FF50DDF9FF3ED2FCFF35C1FCFF2FAAFCFF268BFCFF1D67FBFF1243F6FF0B27DEFF0412B4FE212642F9444648FF464746FE000000C601010101000000001414148B585858FF4F5050FF303433FA020898FA0614D5FF0B29F0FF1342F8FF1B61FDFF237FFDFF2A99FDFF33AFFDFF4FC9FDFF7BCEE4FF5C5C5CFF202020FF4D7A7FFF71E0FEFF44BDFBFF30A5FDFF278CFDFF1F70FDFF1651FBFF0F34F5FF081EE1FF040FBCFF181B54F8525353FF525252FF171717F50909091100000000292929A45F5F5FFD5A5A59FF252538F50205A2FB040DD4FF081BECFF0C2EF6FF1345FBFF195DFDFF2E7DFDFF3A93FDFF4DABFDFF7CD1FFFF797F81FF4C4E4FFF212425FF8BCEE2FF67BBFDFF4194FDFF236EFDFF1650FBFF1039F8FF0923F0FF0514DFFF040ABBFF131362F75E5E5AFF5B5B5CFE2E2E2EFF1212122400000000363636AB696969FD666664FF27273CFD0203A5FF0208CFFF0410E6FF081BF1FF1533F9FF2E56FCFF3568FDFF3975FDFF4587FEFF63A9FEFF88ABC7FF7A7876FF474847FF262728FF6892B3FF659EFDFF3F6EFCFF1C41FAFF0A23F4FF0615EAFF040CD8FF0306B7FF141467FE6A6A65FF666666FE3E3E3EFF1717172C00000000363636A9747474FD70706EFF2E2E40F701029CFC0103C6FF0208DDFF020DEAFF2F3DF5FF384EFAFF4360FBFF486CFBFF4973FDFF517EFEFF72A5FEFF99B3CAFF83817FFF565758FF2D2C2BFF7799C6FF5F80FCFF3F52F7FF101DEDFF030BE2FF0205CFFF0204B1FF161664F8757570FF707070FE444444FF1515152A000000002D2D2D9B838383FE7B7B7BFF464649F901028FFB0002BAFF0103D2FF2529E4FF4148EFFF5060F7FF657CE7FF5F74B9FF6784EEFF5772FDFF5976FDFF769AFEFF98AFD1FF888786FF5A5A5AFF373734FF7088D8FF4D5BF1FF2E34E8FF0002D7FF0103C4FF0202ABFF24245EF8818180FF7D7D7DFF3E3E3EFE0E0E0E1C000000001616167B919191FF838384FE6E6E64FD02027CF80101AEFF0708C6FF4546DFFF4E53E8FF7082FCFF686D7FFF403E39FF5F6A84FF768DFFFF5765FBFF5B6AFBFF87A3FDFFA3B2C0FF7B7A7AFF51504FFF6976A1FF6470F1FF4749E2FF0304CBFF0101B7FF0000A5FF38385BF788888AFF878787FE242424E50404040803030303030303518F8F8FFF8D8D8EFE94948FFF181867F70303A5FF1010BBFF5757DAFF5B5FE2FF8092F6FF91959FFF77787AFF5E6064FF9DB7F3FF7684F8FF6A75F6FF8EA4FBFFA4B9CFFF81807FFF6A6969FF7682A4FF727DEDFF5759DCFF1010C1FF0202ABFF000084F862626CFA8D8D8EFF8E8E8EFE040404A002020202030303030000001D686868FF9C9C9CFF9E9EA1FF454561F600009EFE1111AEFF6565D5FF6669DBFF828FECFFA6AEC3FF949495FF6D6D6CFF79828AFFAECAFDFFA3BAFEFFACC7EFFF7E8082FF838484FF7A7876FF8D99C4FF747CE1FF6263D6FF0F0FB4FF0000A0FF070749EE92928FFF949494FE868686FF000000380202020201010101010101011515159C9E9E9EFEA1A1A1FF8C8C8CFD08085BF00505A0FE6363CCFF7273D7FF7F84DFFFA1AFE3FFB2B4B5FF9B9A9AFF7A7979FF7D8185FF838A92FF7E8184FF8B8A8AFF959494FF999DA4FF96A3E4FF777ADAFF6363CEFF0202A1FF05057DF76E6E6DFAA6A6A6FFA5A5A5FD565656CE0000000001010102000000000101010100000010777777EEABABABFDB3B3B4FF72726BFA000079F72D2DACFF7F80D5FF8182D9FF9199E3FFADBFEEFFBDC2C8FFB5B4B1FFAAA9A9FFA5A4A4FFA8A8A7FFACABA8FFB1B7C1FFA9B9EFFF8C93DFFF7F80D6FF4747BBFF0000A0FF383860F4BABABBFFAAAAABFEB9B9B9FF1C1C1C7700000000010101010000000000000002000000002C2C2C8BBDBDBDFEB7B7B7FFBEBEBEFF585873F6000082F75B5BC0FF8E8FD8FF8F91DBFF9BA0E2FFAAB5E8FFB7C3E3FFBCC5DCFFBCC6DBFFBAC4DCFFB5C0E2FFA9B3E8FF979CDFFF9192DAFF7474CAFF101096FB242459F0A5A5A5FDB7B7B7FFBABABAFE575757E00000001B000000020000000000000000000000000000000200000017595959F1C7C7C7FEC2C2C1FFC7C7C5FF525259F4050579F66B6BC7FFA0A1DBFF9798DAFF9D9FDEFFA3A6E0FFA7ADE3FFA9AEE4FFA6ACE3FFA1A4DFFF9B9DDCFFA1A2DDFF7979CBFF020299FD2A2A58F1CACAC5FFC3C3C3FFBEBEBEFD969696F80000002D000000010000000000000000000000000000000000000000000000020000002F7E7E7EDECFCFCFFDCBCBCBFFD1D1D1FF868690FA222268F5363695F97575C9FF9C9CDBFFAAAAE0FFADADE1FFAEAEE1FFABACE0FFA1A1DDFF7D7ECEFF4242A4FB1C1C73F6606078F6BEBEBCFECCCCCDFFCCCCCCFEB8B8B8FE2323237700000002000000010000000000000000000000000000000000000000000000000000000303030342979797FFDADADAFDD3D3D3FFD7D7D8FFE0E0DCFF7E7E81F90A0A49F1020269F5191990FA3535A7FD3939A9FE1F1F98FB010175F6060651F2505060F4C6C6BEFEDCDCDEFFD3D3D3FFD1D1D1FCBDBDBDFE05050582000000020000000000000000000000000000000000000000000000000000000000000000000000010000000301010136696969C7D4D4D4FDDFDFDFFEDBDBDBFFE3E3E2FFDBDBD7FFBBBBBBFC9A9AA4FA8A8A9CFC87879BFE9393A2FAAEAEB1FBD1D1CDFEE4E4E2FFDEDEDFFFDBDBDBFEDBDBDBFE939393EF1F1F1F6A00000002000000020000000000000000000000000000000000000000000000000000000000000000000000000000000100000003000000090A0A0A92ADADADFCF4F4F4FEE4E4E4FCDFDFDFFEE1E1E1FFE2E2E4FFE4E4E6FFE4E4E6FFE3E3E5FFE1E1E1FFE0E0E0FFDFDFDFFCEFEFEFFDDEDEDEFF434343C60000001100000002000000010000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000200000001050505353B3B3B8B7D7D7DCEBBBBBBF9DCDCDCFEEAEAEAFEEEEEEEFEEEEEEEFEEBEBEBFEE2E2E2FECACACAFC939393E0525252A3090909520000000C0000000200000001000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000030000000000000001000000230505056E1C1C1CA8343434C43B3B3BC8252525B4090909850000003D000000020000000000000003000000020000000000000000000000000000000000000000000000000000000000000000F000000FE0000007C0000003C0000003E0000007F000000FE0000007E000000B80000001A00000018000000200000000000000000000000080000000800000008000000080000000800000008000000000000000000000000000000280000002A0000001C0000003E0000003F000000FF000000FF800001FFE00003FFFA004FF]
Point(doLoadFromBitmap)
}
Add(DoData,6705143,413,175)
{
link(onEventData,5019975:onEvent1,[(533,181)(533,27)])
link(Data,1918409:Icon,[])
}
Add(Bitmap,13338497,364,84)
{
HWidth=24
HHeight=8
Point(FillColor)
Point(doCreate)
}
Add(DoData,2245736,364,133)
{
link(onEventData,1918409:doLoadFromBitmap,[])
link(Data,13338497:Bitmap,[])
}
Add(Hub,7997678,294,98)
{
OutCount=3
link(onEvent1,13338497:doCreate,[])
link(onEvent2,2245736:doData,[(339,111)(339,139)])
link(onEvent3,6705143:doData,[(325,118)(325,181)])
}
END_SDK
Add(ChildForm,11529821,259,119)
{
link(onEvent1,15662186:doIcon,[(303,125)(303,94)(165,94)(165,118)])
}
BEGIN_SDK
Add(EditMulti,9871184,21,21)
{
EventCount=1
WorkCount=1
VarCount=1
Width=517
link(doWork1,2933445:doPos,[(60,27)(60,83)])
link(Var1,14014132:SelectColor,[(27,183)(209,183)])
}
Add(MainForm,1411601,161,49)
{
Left=35
Top=105
Width=200
Height=100
Color=-16777211
Visible=1
BorderStyle=6
Point(doLeft)
Point(doTop)
Point(doVisible)
link(onCreate,10737266:doWork1,[(256,69)])
}
Add(ColorMatrix,14014132,203,98)
{
Width=210
Height=95
Color=16777215
BoxRows=8
BoxCols=16
BoxWidth=10
link(onClick,10737266:doWork2,[])
}
Add(DoData,5657403,84,140)
{
Data=Integer(0)
link(onEventData,1251215:doWork3,[(144,146)])
}
Add(Hub,541364,273,98)
{
link(onEvent1,14747519:doEvent1,[])
link(onEvent2,5657403:doData,[(310,111)(310,199)(62,199)(62,146)])
}
Add(InlineCode,2933445,84,77)
{
WorkPoints=#5:doPos|
EventPoints=#3:onx|3:ony|3:onV|
Code=#26:{ Author -=andrestudio=- }|15:unit HiAsmUnit;|0:|9:interface|0:|21:uses kol,Share,Debug;|0:|4:type|28: THiAsmClass = class(TDebug)|10: private|0:|9: public|28: onX,onY,onV: THI_Event;|47: procedure doPos(var dt: TData; idx: word);|5: end;|0:|14:implementation|0:|54:procedure THiAsmClass.doPos(var dt: TData; idx: word);|3:var|15: pos: integer;|5:begin|32: pos := Cardinal(ToInteger(dt));|34: _hi_onEvent(onX,(pos and $ffff));|31: _hi_onEvent(onY,(pos shr 16));|20: _hi_onEvent(onV,1);|4:end;|0:|4:end.|
link(onx,1411601:doLeft,[])
link(ony,1411601:doTop,[])
link(onV,1251215:doWork2,[])
}
Add(HubEx,1251215,140,91)
{
link(onEvent,1411601:doVisible,[])
}
Add(Icon,649678,448,119)
{
Icon=[0000010001002020000001002000A810000016000000280000002000000040000000010020000000000000100000000000000000000000000000000000000000000000000000000000000000000000000001000000020000000300000006000000080000000A0000000B0000000D0000000F000000100000000F0000000F0000000F00000010000000100000000F0000000D0000000B0000000A0000000800000005000000030000000200000001000000000000000000000000000000000000000000000000000000000000000100000003000000080000000E000000170000001F000000270000002F000000320000002E0001012E000101360001013E0000013E000101380001012E0000002C0000002F0000002E000000260000001E000000150000000D0000000700000003000000010000000000000000000000000000000000000000000000010000000200000007000000100000001D0000002E0000003F0001014A0001026801020298010202C0010303DA020505EB020506F2020606F4020505EE010404E1010404C9010303A6010202750001014A0001013A0000002C0000001B0000000E00000006000000020000000100000000000000000000000000000000000000010000000200000007000000100000001F0001012E0001013A010303B0010505FF020707FF02090AFE030B0CFC030D0DFD040E0FFE040E0FFE040E0EFD030C0CFC030A0BFD020808FF020605FF010303DA00020258000101260000001F0000000E00000006000000020000000100000000000000000000000000000000000000000000000200000004000000090000000C0103046D020404E3030809FE040D0DFF061314FF071817FF081D1BFF0A201FFD0A2324FE0A2425FF0A2222FD091F1DFF081A19FF061616FF051011FF030B0BFE020707F00104049A01020222000100090000000400000001000000000000000000000000000000000000000000000000000000000000000200010102010A0A91050808FE070F0FFD091617FF0B1F21FF0E2824FE0F313BF80F386AF6103C90F71241A3FB1242A7FE104098F70F3B7BF60F334DF70E2B28FC0D2422FF0A1A1CFF081313FE060C0CFD020909C80001010200010102000000000000000000000000000000000000000000000000000000000000000100000001040F13900B0C0CFD0E1717FE102022FF112B2EFD103558F813439AF91750C9FC1A5EDEFF1E68E7FF206DEAFF206EEBFF1F6AE8FF1B63E2FF1957D0FD144AAFFA123C71F8113036FA112626FF0E1A1BFF0C1111FD061110D101080A29000100020000000000000000000000000000000000000000000000000000000200262A7B100E0DFD121A1AFF152627FF15322CFD103D86F51652D5FF1D68E7FF217AF4FF288BF9FF339AFBFF3EA4FBFF40A7FDFF369DFAFF2B90FAFF2482F7FF1F71EDFF195DDCFF1245AFF8123747F7172D2EFF131F1FFF131C1DFB071017BD00000000000000020000000000000000000000000000000100010002020B064A151215FE191F1FFE1B2829FF172F3CFA0F3B97F61958DAFF2075F1FF288EFAFF2DA2FCFF3DB6FCFF59CEFEFF4A94ADFF407E95FF58C1E8FF41BCFCFF32ABFCFF2999FBFF2482F5FF1C67E5FF1449B4FA12344FF51B2E2EFF192122FF17181AFE0417138C0002010400000001000000000000000000000002000000000D0D0DBF1F2221FB21292AFF1F312AFE0E308BF6164FD9FF1F73F4FF2993FCFF30AEFCFF37C4FCFF50DAFDFF67BAC8FF181211FF000000FF31626AFF5BE5FFFF3CCAFBFF33B9FCFF2DA1FCFF2483F9FF1B61E5FF113DBFFC163044F7222F31FF202525FD1A1B1BFF0000003F000000030000000000000000010101020202024B212222F9272A2AFF26302FFE0B215AF2103BCAFD1A5FF1FF2586FBFF2EA9FCFF36C3FCFF3DD8FCFF55EAFDFF74C3C8FF615D5CFF3F3E3EFF406E71FF61F6FFFF42DEFBFF39CFFBFF33B7FCFF2A97FCFF2072F5FF154CDCFF0D2D8BF723312EFC292F30FF292B2BFD0E0E0EA000000000010101020101010100000004121212D5323232FE313436FF1C2939F8081FB1FB1240E2FF1B65F9FF288EFDFF31B2FCFF38CDFCFF3EE0FBFF50EBFBFF73FAFFFF82B0B1FF6F8585FF75E2E5FF54EDFAFF42E6FBFF3BD8FCFF36C0FCFF2CA1FCFF217AFBFF1651EFFF0D2FC3FD0A1C45F1313735FF303131FD232323EA00000006010101010404040400000034343434FF3A3B3BFE3D403EFF0E195CF60A21C9FF113EEDFF1A62FBFF2689FDFF2FADFCFF37C8FCFF3DDBFCFF4DE8FCFF6FF6FEFF6AB6B8FF66A8A9FF72EFF6FF4FEAFBFF40E2FCFF3AD3FCFF34BBFCFF2B9CFDFF2075FCFF164EF5FF0D2ED7FF03128CF62C3237FC393A3BFF383838FE000000670202020201010101000000644B4B4BFF434445FE3D4037FF050E80F8081CD0FF0F35F1FF1755FAFF2179FCFF2B9CFCFF32B7FCFF39CBFCFF4DDDFDFF72DDEBFF1D1B1BFF000000FF5AB1B4FF50DDF9FF3ED2FCFF35C1FCFF2FAAFCFF268BFCFF1D67FBFF1243F6FF0B27DEFF0412B4FE212642F9444648FF464746FE000000C601010101000000001414148B585858FF4F5050FF303433FA020898FA0614D5FF0B29F0FF1342F8FF1B61FDFF237FFDFF2A99FDFF33AFFDFF4FC9FDFF7BCEE4FF5C5C5CFF202020FF4D7A7FFF71E0FEFF44BDFBFF30A5FDFF278CFDFF1F70FDFF1651FBFF0F34F5FF081EE1FF040FBCFF181B54F8525353FF525252FF171717F50909091100000000292929A45F5F5FFD5A5A59FF252538F50205A2FB040DD4FF081BECFF0C2EF6FF1345FBFF195DFDFF2E7DFDFF3A93FDFF4DABFDFF7CD1FFFF797F81FF4C4E4FFF212425FF8BCEE2FF67BBFDFF4194FDFF236EFDFF1650FBFF1039F8FF0923F0FF0514DFFF040ABBFF131362F75E5E5AFF5B5B5CFE2E2E2EFF1212122400000000363636AB696969FD666664FF27273CFD0203A5FF0208CFFF0410E6FF081BF1FF1533F9FF2E56FCFF3568FDFF3975FDFF4587FEFF63A9FEFF88ABC7FF7A7876FF474847FF262728FF6892B3FF659EFDFF3F6EFCFF1C41FAFF0A23F4FF0615EAFF040CD8FF0306B7FF141467FE6A6A65FF666666FE3E3E3EFF1717172C00000000363636A9747474FD70706EFF2E2E40F701029CFC0103C6FF0208DDFF020DEAFF2F3DF5FF384EFAFF4360FBFF486CFBFF4973FDFF517EFEFF72A5FEFF99B3CAFF83817FFF565758FF2D2C2BFF7799C6FF5F80FCFF3F52F7FF101DEDFF030BE2FF0205CFFF0204B1FF161664F8757570FF707070FE444444FF1515152A000000002D2D2D9B838383FE7B7B7BFF464649F901028FFB0002BAFF0103D2FF2529E4FF4148EFFF5060F7FF657CE7FF5F74B9FF6784EEFF5772FDFF5976FDFF769AFEFF98AFD1FF888786FF5A5A5AFF373734FF7088D8FF4D5BF1FF2E34E8FF0002D7FF0103C4FF0202ABFF24245EF8818180FF7D7D7DFF3E3E3EFE0E0E0E1C000000001616167B919191FF838384FE6E6E64FD02027CF80101AEFF0708C6FF4546DFFF4E53E8FF7082FCFF686D7FFF403E39FF5F6A84FF768DFFFF5765FBFF5B6AFBFF87A3FDFFA3B2C0FF7B7A7AFF51504FFF6976A1FF6470F1FF4749E2FF0304CBFF0101B7FF0000A5FF38385BF788888AFF878787FE242424E50404040803030303030303518F8F8FFF8D8D8EFE94948FFF181867F70303A5FF1010BBFF5757DAFF5B5FE2FF8092F6FF91959FFF77787AFF5E6064FF9DB7F3FF7684F8FF6A75F6FF8EA4FBFFA4B9CFFF81807FFF6A6969FF7682A4FF727DEDFF5759DCFF1010C1FF0202ABFF000084F862626CFA8D8D8EFF8E8E8EFE040404A002020202030303030000001D686868FF9C9C9CFF9E9EA1FF454561F600009EFE1111AEFF6565D5FF6669DBFF828FECFFA6AEC3FF949495FF6D6D6CFF79828AFFAECAFDFFA3BAFEFFACC7EFFF7E8082FF838484FF7A7876FF8D99C4FF747CE1FF6263D6FF0F0FB4FF0000A0FF070749EE92928FFF949494FE868686FF000000380202020201010101010101011515159C9E9E9EFEA1A1A1FF8C8C8CFD08085BF00505A0FE6363CCFF7273D7FF7F84DFFFA1AFE3FFB2B4B5FF9B9A9AFF7A7979FF7D8185FF838A92FF7E8184FF8B8A8AFF959494FF999DA4FF96A3E4FF777ADAFF6363CEFF0202A1FF05057DF76E6E6DFAA6A6A6FFA5A5A5FD565656CE0000000001010102000000000101010100000010777777EEABABABFDB3B3B4FF72726BFA000079F72D2DACFF7F80D5FF8182D9FF9199E3FFADBFEEFFBDC2C8FFB5B4B1FFAAA9A9FFA5A4A4FFA8A8A7FFACABA8FFB1B7C1FFA9B9EFFF8C93DFFF7F80D6FF4747BBFF0000A0FF383860F4BABABBFFAAAAABFEB9B9B9FF1C1C1C7700000000010101010000000000000002000000002C2C2C8BBDBDBDFEB7B7B7FFBEBEBEFF585873F6000082F75B5BC0FF8E8FD8FF8F91DBFF9BA0E2FFAAB5E8FFB7C3E3FFBCC5DCFFBCC6DBFFBAC4DCFFB5C0E2FFA9B3E8FF979CDFFF9192DAFF7474CAFF101096FB242459F0A5A5A5FDB7B7B7FFBABABAFE575757E00000001B000000020000000000000000000000000000000200000017595959F1C7C7C7FEC2C2C1FFC7C7C5FF525259F4050579F66B6BC7FFA0A1DBFF9798DAFF9D9FDEFFA3A6E0FFA7ADE3FFA9AEE4FFA6ACE3FFA1A4DFFF9B9DDCFFA1A2DDFF7979CBFF020299FD2A2A58F1CACAC5FFC3C3C3FFBEBEBEFD969696F80000002D000000010000000000000000000000000000000000000000000000020000002F7E7E7EDECFCFCFFDCBCBCBFFD1D1D1FF868690FA222268F5363695F97575C9FF9C9CDBFFAAAAE0FFADADE1FFAEAEE1FFABACE0FFA1A1DDFF7D7ECEFF4242A4FB1C1C73F6606078F6BEBEBCFECCCCCDFFCCCCCCFEB8B8B8FE2323237700000002000000010000000000000000000000000000000000000000000000000000000303030342979797FFDADADAFDD3D3D3FFD7D7D8FFE0E0DCFF7E7E81F90A0A49F1020269F5191990FA3535A7FD3939A9FE1F1F98FB010175F6060651F2505060F4C6C6BEFEDCDCDEFFD3D3D3FFD1D1D1FCBDBDBDFE05050582000000020000000000000000000000000000000000000000000000000000000000000000000000010000000301010136696969C7D4D4D4FDDFDFDFFEDBDBDBFFE3E3E2FFDBDBD7FFBBBBBBFC9A9AA4FA8A8A9CFC87879BFE9393A2FAAEAEB1FBD1D1CDFEE4E4E2FFDEDEDFFFDBDBDBFEDBDBDBFE939393EF1F1F1F6A00000002000000020000000000000000000000000000000000000000000000000000000000000000000000000000000100000003000000090A0A0A92ADADADFCF4F4F4FEE4E4E4FCDFDFDFFEE1E1E1FFE2E2E4FFE4E4E6FFE4E4E6FFE3E3E5FFE1E1E1FFE0E0E0FFDFDFDFFCEFEFEFFDDEDEDEFF434343C60000001100000002000000010000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000200000001050505353B3B3B8B7D7D7DCEBBBBBBF9DCDCDCFEEAEAEAFEEEEEEEFEEEEEEEFEEBEBEBFEE2E2E2FECACACAFC939393E0525252A3090909520000000C0000000200000001000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000030000000000000001000000230505056E1C1C1CA8343434C43B3B3BC8252525B4090909850000003D000000020000000000000003000000020000000000000000000000000000000000000000000000000000000000000000F000000FE0000007C0000003C0000003E0000007F000000FE0000007E000000B80000001A00000018000000200000000000000000000000080000000800000008000000080000000800000008000000000000000000000000000000280000002A0000001C0000003E0000003F000000FF000000FF800001FFE00003FFFA004FF]
Point(doLoadFromBitmap)
}
Add(DoData,1812286,448,175)
{
link(onEventData,9871184:onEvent1,[(516,181)(516,27)])
link(Data,649678:Icon,[])
}
Add(Bitmap,11595068,399,84)
{
HWidth=24
HHeight=8
Point(FillColor)
Point(doCreate)
}
Add(DoData,5381059,399,133)
{
link(onEventData,649678:doLoadFromBitmap,[])
link(Data,11595068:Bitmap,[])
}
Add(Hub,14747519,350,98)
{
OutCount=3
link(onEvent1,11595068:doCreate,[])
link(onEvent2,5381059:doData,[(382,111)(382,139)])
link(onEvent3,1812286:doData,[(372,118)(372,181)])
}
Add(HubEx,10737266,252,98)
{
link(onEvent,541364:doEvent1,[])
}
END_SDK
Add(Button,15662186,182,112)
{
Left=30
Top=30
Width=75
Caption=""
Mode=1
Arrow=0
Point(onArrowClick)
Point(doIcon)
link(onClick,4902519:doData,[(236,118)(236,174)])
link(onArrowClick,11529821:doWork1,[])
}
Add(DoData,4902519,259,168)
{
link(onEventData,6686582:doEvent,[])
link(Data,11529821:Var1,[])
}
Add(Debug,6686582,343,168)
{
}
Add(Button,7040136,203,238)
{
Left=180
Top=30
Width=75
Caption=""
Mode=1
Arrow=0
Point(onArrowClick)
Point(doIcon)
link(onArrowClick,8067113:doWork1,[])
}
Поделиться32025-01-15 23:06:19
Надо конечно в компонент обернуть...
